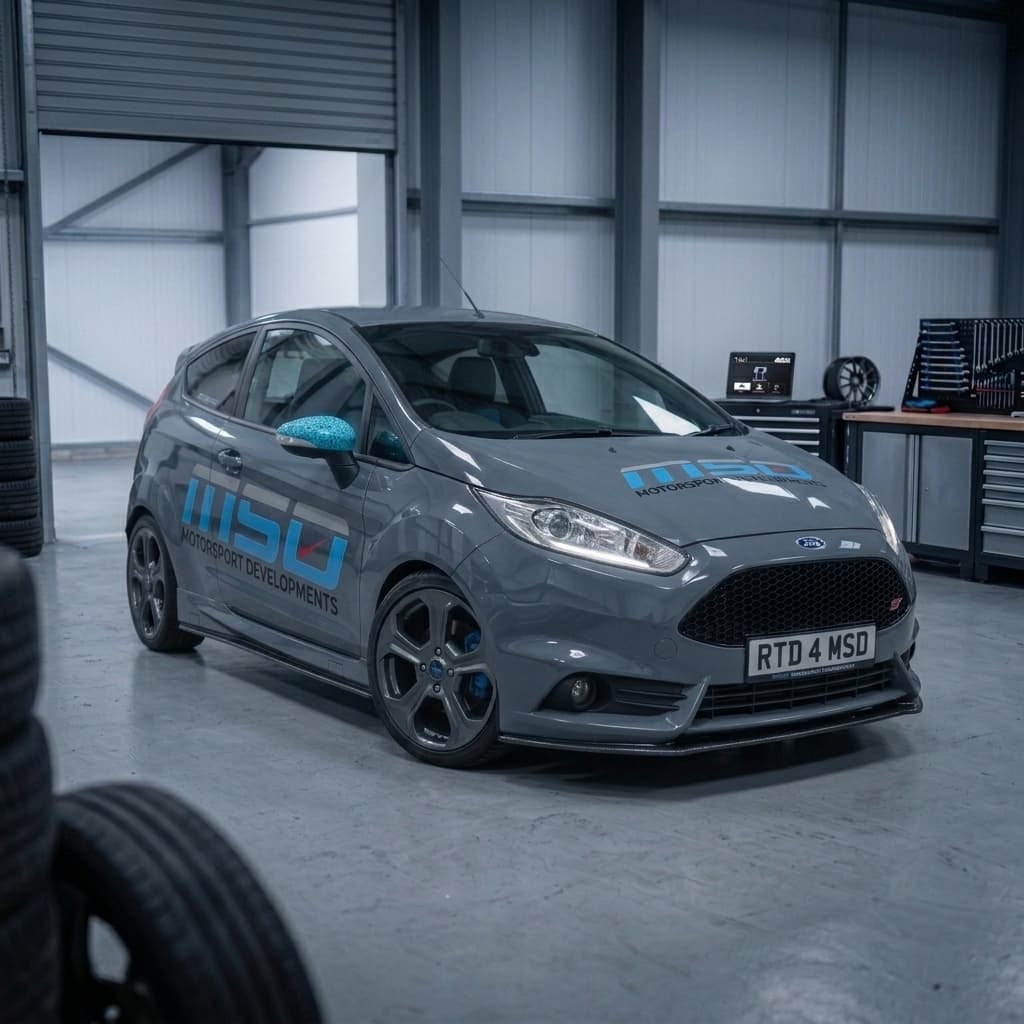

MK7 Fiesta ST200 Tuning.
Surely one of the best hot hatches of 2017. This later incarnation of the popular ST180 has had its power output raised to 200PS. Its 1.6 litre turbocharged engine gives a strong, linear, almost normally aspirated feeling power curve and is a great example of how things have moved on with turbocharged 4 cylinder engines.
.png "Fiesta ST200 tuning graph")
.png "Evolution Chips Network")
MSD 220 (320Nm and 220PS)
This calibration works perfectly on a totally standard car and lifts the power restrictions from within the ECU, further enhancing the power output to 320NM and 220PS which really brings the car to life!
This isn’t just headline power either, flexibility and reliability are our speciality so the ECU's incredible torque model is fully retained ensuring factory driveability with no hesitations, surges or hiccups in the power delivery. Naturally, as with all MSD power upgrades, all necessary safety limits and protection strategies are re-profiled and enhanced in order to allow the extra performance whilst retaining a strong, O.E Level of engine protection.
Please be aware that power figures don’t tell the whole story with these management systems, making extra power is easy, but many companies completely disable the torque control and most of the protection strategies in order to do so and this can cause driveability and longevity concerns with often massive boost levels required to make the power. Read our comprehensive "Safety" tab for more details.
Additional hardware needed:
- None.
Standard Calibration Features
- Improved idle stability
- Factory drive-ability under all conditions.
- All engine protections remain in place (See safety tab)
Personalisations Available:
- Decat MIL eliminated (For vehicle with a de-cat fitted)
- Eco shift light permanent disable option.
- Overrun burbles activated
Additional fuel programming available. (Ask for further details)
- WMI (water methanol injection) optimisations available on request.
- Ethanol (E10-E40) optimisations available on request..
- High octane fuel optimisations available on request. (100+ RON)
Choose Your Installation Method:
Installed directly to your vehicles PCM via OBD. This can be done here at our Blackpool workshop or via any of our approved installers across our global Evolution Chips network. (Visit the link below to find one via postcode search)
- Includes full vehicle diagnostics scan pre and post installation.
- Datalogging and adjustments where necessary.
- Full validation test drive.
Sent out by post. Flash the MSD calibration directly from your driveway using your phone on the TDN cloud network.
- Powered by the HP Tuners RTD4 interface and TDN app.
- Includes 1x Base calibration and 2x custom E-Tuning sessions for true custom tuning via data analysis.
- High-speed engine datalogging and professional assessment by Human MSD calibrators to verify perfection.
MSD 240 (340Nm and 240PS)
This calibration utilises uprated intercoolers and free flowing exhaust and intake systems on an otherwise standard vehicle and optimises the calibration in order to enhance the power output to 340NM and 240PS.
This isn’t just headline power either, flexibility and reliability are our speciality so the ECU's incredible torque model is fully retained ensuring factory driveability with no hesitations, surges or hiccups in the power delivery. Naturally, as with all MSD power upgrades, all necessary safety limits and protection strategies are re-profiled and enhanced in order to allow the extra performance whilst retaining a strong, O.E Level of engine protection.
Please be aware that power figures don’t tell the whole story with these management systems, making extra power is easy, but many companies completely disable the torque control and most of the protection strategies in order to do so and this can cause driveability and longevity concerns with often massive boost levels required to make the power. Read our comprehensive "Safety" tab for more details.
Additional hardware needed:
- Free flow induction kit
- Free flow exhaust with Sports Cat (Or decat)
- Uprated intercooler
Standard Calibration Features
- Improved idle stability
- Factory drive-ability under all conditions.
- All engine protections remain in place (See safety tab)
Personalisations Available:
- Decat MIL eliminated (For vehicle with a de-cat fitted)
- Eco shift light permanent disable option.
- Overrun burbles activated
Additional fuel programming available. (Ask for further details)
- WMI (water methanol injection) optimisations available on request.
- Ethanol (E10-E40) optimisations available on request..
- High octane fuel optimisations available on request. (100+ RON)
Choose Your Installation Method:
Installed directly to your vehicles PCM via OBD. This can be done here at our Blackpool workshop or via any of our approved installers across our global Evolution Chips network. (Visit the link below to find one via postcode search)
- Includes full vehicle diagnostics scan pre and post installation.
- Datalogging and adjustments where necessary.
- Full validation test drive.
Sent out by post. Flash the MSD calibration directly from your driveway using your phone on the TDN cloud network.
- Powered by the HP Tuners RTD4 interface and TDN app.
- Includes 1x Base calibration and 2x custom E-Tuning sessions for true custom tuning via data analysis.
- High-speed engine datalogging and professional assessment by Human MSD calibrators to verify perfection.
MSD 280 (400Nm and 280PS)
This is where things start to get serious!
A calibration designed to utilise serious upgrades such as the X47 or OCM 11 blade hybrid turbochargers, uprated intercoolers and free flowing exhaust and intake systems. On suitable vehicle hardware this calibration will enhance the power output to 400NM and 280PS.
This isn’t just headline power either, flexibility and reliability are our speciality so the ECU's incredible torque model is fully retained ensuring factory driveability with no hesitations, surges or hiccups in the power delivery. Naturally, as with all MSD power upgrades, all necessary safety limits and protection strategies are re-profiled and enhanced in order to allow the extra performance whilst retaining a strong, O.E Level of engine protection.
Please be aware that power figures don’t tell the whole story with these management systems, making extra power is easy, but many companies completely disable the torque control and most of the protection strategies in order to do so and this can cause driveability and longevity concerns with often massive boost levels required to make the power. Read our comprehensive "Safety" tab for more details.
Additional hardware needed:
- Free flow induction kit
- Free flow exhaust with Sports Cat (Or decat)
- Uprated intercooler
- X47 or OCM 11 blade hybrid turbochargers(Or similar)

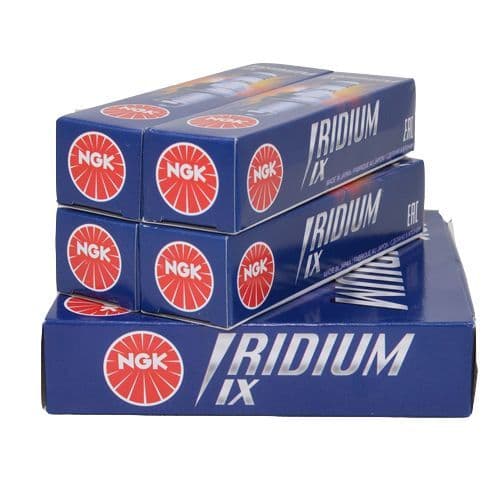

- 1 step colder spark plugs
- Turbosmart 7psi actuator with correct 3mm pre-load
Standard Calibration Features
- Improved idle stability
- Factory drive-ability under all conditions.
- All engine protections remain in place (See safety tab)
Personalisations Available:
- Decat MIL eliminated (For vehicle with a sports cat fitted)
- Eco shift light permanent disable option.
- Overrun burbles activated
Additional fuel programming available. (Ask for further details)
- WMI (water methanol injection) optimisations available on request.
- Ethanol (E10-E40) optimisations available on request..
- High octane fuel optimisations available on request. (100+ RON)
Choose Your Installation Method:
Installed directly to your vehicles PCM via OBD. This can be done here at our Blackpool workshop or via any of our approved installers across our global Evolution Chips network. (Visit the link below to find one via postcode search)
- Includes full vehicle diagnostics scan pre and post installation.
- Datalogging and adjustments where necessary.
- Full validation test drive.
Sent out by post. Flash the MSD calibration directly from your driveway using your phone on the TDN cloud network.
- Powered by the HP Tuners RTD4 interface and TDN app.
- Includes 1x Base calibration and 2x custom E-Tuning sessions for true custom tuning via data analysis.
- High-speed engine datalogging and professional assessment by Human MSD calibrators to verify perfection.
MSD 320 (440+Nm and 320PS)
320PS in a Fiesta just has to be regarded as serious!
A calibration designed to utilise serious upgrades such as the Turbo Technics S242 or X47R hybrid turbochargers, uprated intercoolers and free flowing exhaust and intake systems. On suitable vehicle hardware this calibration will enhance the power output to 440NM and 320PS.
This isn’t just headline power either, flexibility and reliability are our speciality so the ECU's incredible torque model is fully retained ensuring factory driveability with no hesitations, surges or hiccups in the power delivery. Naturally, as with all MSD power upgrades, all necessary safety limits and protection strategies are re-profiled and enhanced in order to allow the extra performance whilst retaining a strong, O.E Level of engine protection.
Please be aware that power figures don’t tell the whole story with these management systems, making extra power is easy, but many companies completely disable the torque control and most of the protection strategies in order to do so and this can cause driveability and longevity concerns with often massive boost levels required to make the power. Read our comprehensive "Safety" tab for more details.
Additional hardware needed:
- Free flow induction kit
- Free flow exhaust with Sports Cat (Or decat)
- Uprated intercooler
- Turbo Technics S242 or X47R hybrid turbochargers (Or similar)
- 1 step colder spark plugs
- Turbosmart 7psi actuator with correct 3mm pre-load
Standard Calibration Features
- Improved idle stability
- Factory drive-ability under all conditions.
- All engine protections remain in place (See safety tab)
Personalisations Available:
- Decat MIL eliminated (For vehicle with a sports cat fitted)
- Eco shift light permanent disable option.
- Overrun burbles activated
Additional fuel programming available. (Ask for further details)
- WMI (water methanol injection) optimisations available on request.
- Ethanol (E10-E40) optimisations available on request..
- High octane fuel optimisations available on request. (100+ RON)
Choose Your Installation Method:
Installed directly to your vehicles PCM via OBD. This can be done here at our Blackpool workshop or via any of our approved installers across our global Evolution Chips network. (Visit the link below to find one via postcode search)
- Includes full vehicle diagnostics scan pre and post installation.
- Datalogging and adjustments where necessary.
- Full validation test drive.
Sent out by post. Flash the MSD calibration directly from your driveway using your phone on the TDN cloud network.
- Powered by the HP Tuners RTD4 interface and TDN app.
- Includes 1x Base calibration and 2x custom E-Tuning sessions for true custom tuning via data analysis.
- High-speed engine datalogging and professional assessment by Human MSD calibrators to verify perfection.
MSD 340 (440+Nm and 340PS)
Well into seriously fast territory now!
A calibration designed around stronger engine internals (commonly known as 'Forged'), in order to utilise serious upgrades such as the excellent Turbo Technics S280 Turbocharger and all the normal supporting hardware such as uprated intercoolers and free flowing exhaust and intake systems. On suitable vehicle hardware this calibration will enhance the power output to 440NM and 340PS.
This isn’t just headline power either, flexibility and reliability are our speciality so the ECU's incredible torque model is fully retained ensuring factory driveability with no hesitations, surges or hiccups in the power delivery. Naturally, as with all MSD power upgrades, all necessary safety limits and protection strategies are re-profiled and enhanced in order to allow the extra performance whilst retaining a strong, O.E Level of engine protection.
Please be aware that power figures don’t tell the whole story with these management systems, making extra power is easy, but many companies completely disable the torque control and most of the protection strategies in order to do so and this can cause driveability and longevity concerns with often massive boost levels required to make the power. Read our comprehensive "Safety" tab for more details.
Additional hardware needed:
- Suitably uprated engine internals (Forged)
- Free flow induction kit
- Uprated intercooler
- Uprated tubular exhaust manifold
- Turbo Technics S280 turbocharger. (Or similar)
- Free flow turbo back exhaust with Sports Cat (Or decat)
- 1 step colder spark plugs
- Turbosmart 7psi actuator with correct 3mm pre-load
Optional hardware:
- Uprated DI fuel injectors can be accommodated for if fitted already.
Standard Calibration Features
- Improved idle stability
- Factory drive-ability under all conditions.
- All engine protections remain in place (See safety tab)
Personalisations Available:
- Decat MIL eliminated (For vehicle with a sports cat fitted)
- Eco shift light permanent disable option.
- Overrun burbles activated
Additional fuel programming available. (Ask for further details)
- WMI (water methanol injection) optimisations available on request.
- Ethanol (E10-E40) optimisations available on request..
- High octane fuel optimisations available on request. (100+ RON)
Choose Your Installation Method:
Installed directly to your vehicles PCM via OBD. This can be done here at our Blackpool workshop or via any of our approved installers across our global Evolution Chips network. (Visit the link below to find one via postcode search)
- Includes full vehicle diagnostics scan pre and post installation.
- Datalogging and adjustments where necessary.
- Full validation test drive.
Sent out by post. Flash the MSD calibration directly from your driveway using your phone on the TDN cloud network.
- Powered by the HP Tuners RTD4 interface and TDN app.
- Includes 1x Base calibration and 2x custom E-Tuning sessions for true custom tuning via data analysis.
- High-speed engine datalogging and professional assessment by Human MSD calibrators to verify perfection.
MSD 380 (450+Nm and 380PS)
Things are way past serious now and this conversion is available on our dyno only!
Again, this calibration is designed around stronger engine internals (commonly known as 'Forged'). Alongside all the normal upgrades for this kind of airflow such as the intercoolers, induction kits and full exhaust systems, we are now looking at bigger turbochargers like the Garrett GTX2860R which we can accommodate as internal or externally gated. On vehicle fitted with all the right hardware we are now looking to develop over 450Nm and 380PS.
This isn’t just headline power either, flexibility and reliability are our speciality so the ECU's incredible torque model is fully retained ensuring factory driveability with no hesitations, surges or hiccups in the power delivery. Naturally, as with all MSD power upgrades, all necessary safety limits and protection strategies are re-profiled and enhanced in order to allow the extra performance whilst retaining a strong, O.E Level of engine protection.
Please be aware that power figures don’t tell the whole story with these management systems, making extra power is easy, but many companies completely disable the torque control and most of the protection strategies in order to do so and this can cause driveability and longevity concerns with often massive boost levels required to make the power. Read our comprehensive "Safety" tab for more details.
Additional hardware needed:
- Suitably uprated engine internals (Forged)
- Free flow induction kit
- Uprated intercooler
- Uprated tubular exhaust manifold
- Garrett GTX2860R turbocharger. (Or similar)
- Free flow turbo back exhaust with Sports Cat (Or decat)
- 1 step colder spark plugs
- Turbosmart 7psi wastegate actuator (Internal or external)
- 30% Uprated DI fuel injectors
- MSD tMAP4 TIP Sensor. (we supply and fit)
Standard Calibration Features
- Improved idle stability
- Factory drive-ability under all conditions.
- All engine protections remain in place (See safety tab)
- Boost strategy utilises our uprated 4Bar sensor.
Personalisations Available:
- Decat MIL eliminated (For vehicle with a sports cat fitted)
- Eco shift light permanent disable option.
- Overrun burbles activated
Additional fuel programming available. (Ask for further details)
- WMI (water methanol injection) optimisations available on request.
- Ethanol (E10-E40) optimisations available on request..
- High octane fuel optimisations available on request. (100+ RON)
This conversion is only available via ourselves and must be installed, tested and tuned on our dyno.
Total cost of this calibration installed: £749.00 inc vat.
(Includes the MSD tMAP4 fitment, diagnostics and our dyno time)
Choose Your Installation Method:
Installed directly to your vehicles PCM via OBD. This conversion is only available via ourselves and must be installed, tested and tuned on our dyno.
- Includes the MSD tMAP4 fitment, diagnostics and our dyno time.
- Datalogging and adjustments where necessary.
- Full validation test drive.
Sorry.
This
Calibration
Is
Not
Available
For
Home
Installation
MSD Bespoke calibration solutions
MSD 380 - 500
We recognise that there are many hardware specifications out there and sometimes we need to calibrate to suit your own bespoke hardware build. From MSD 380 onwards we tend to be dealing with a variety of different turbochargers.
Example hardware specification:
- Suitably uprated engine internals (Forged)
- Free flow induction kit
- Uprated intercooler
- Uprated tubular exhaust manifold
- Garrett GTX30 turbocharger. (Or similar)
- Free flow turbo back exhaust with Sports Cat (Or decat)
- 2 step colder spark plugs
- Turbosmart wastegate actuator (Internal or external)
- 30% or higher Uprated DI fuel injectors
- MSD tMAP4 TIP Sensor. (we supply and fit)
Standard Calibration Features
- Improved idle stability
- Factory drive-ability under all conditions.
- All engine protections remain in place (See safety tab)
- Boost strategy utilises our uprated 4Bar sensor.
Personalisations Available:
- Decat MIL eliminated (For vehicle with a sports cat fitted)
- Eco shift light permanent disable option.
- Overrun burbles activated
Additional fuel programming available. (Ask for further details)
- WMI (water methanol injection) optimisations available on request.
- Ethanol (E10-E40) optimisations available on request..
- High octane fuel optimisations available on request. (100+ RON)
Total cost of this calibration installed: £900 inc vat.
These bespoke calibrations will ONLY be available on our dyno and the price includes the dyno cell hire and 2x professional dyno operators / calibrators labour.
Choose Your Installation Method:
These bespoke calibrations will ONLY be available on our dyno and the price includes the dyno cell hire and 2x professional dyno operators / calibrators labour.
- Full bespoke mapping session on our 4WD rolling road.
- Includes the MSD tMAP4 sensor fitment.
- Maximum protection profiling.
Sorry.
This
Calibration
Is
Not
Available
For
Home
Installation
Next-Gen Home Tuning Option. The MSD RTD4.
All of our calibrations for your vehicle are now available by mail order. The ultimate combination of Motorsport Developments software, advanced RTD4 hardware, and the cloud-powered TDN application framework allows you to safely enjoy world-class ECU calibration from Motorsport Developments without ever leaving your driveway.
The MSD RTD4 Bluetooth Interface Device:
The RTD4 interface functions as a cutting-edge hardware link connecting your vehicle's engine control module directly to our engineers via Bluetooth and your smartphone. Far beyond an ordinary handheld programmer, the RTD4 acts as a robust diagnostic scanner, high-speed engine data logger, and ultra-secure ECU flashing interface built to withstand professional vehicle development workflows.
.png)
The TDN Network Application Framework:
Available on both iOS and Android platforms, the TDN app is your portal to our calibrators desk. It bypasses the need for clunky windows laptops and external file managers entirely. The app seamlessly links your smartphone to your plugged-in RTD4 interface via Bluetooth, uploading vehicle data to us and downloading bespoke MSD custom files for you right out of the cloud.
Our 6-Step Remote Tuning Process:
- Order Your RTD4 Interface Kit: Order your signature Motorsport Developments RTD4 hardware interface directly from our online webshop for trackable dispatch to your door.
- Download the TDN Mobile App: While your hardware package is on its way, download the official TDN Application via the Google Play Store or Apple App Store and configure your user profile.
- Read Your Factory File Baseline: Unbox your device and plug the RTD4 firmly into your vehicle's standard diagnostic OBD port. Switch on your car's ignition and select "Read File" inside the app via Bluetooth.
- Submit Data to Our Engineering Desk: Using the seamless transfer infrastructure built straight into the app, sync your read data file instantly up to the cloud tuning portal, noting down all mechanical bolt-on modifications.
- Flash Your Custom MSD Tune: Our dedicated calibration team reviews your setup and manually constructs your custom calibration. Open the app, hit "Write File," and easily program your vehicles PCM wit your new performance calibration inside just a few minutes.
- Datalog and Fine-Tune (2x E-Tunes): Your remote tune includes a base tune and 2x MSD custom E-Tuning sessions for remote custom tuning. This system utilises the RTD4's high-speed engine data logger to capture real-world live data from your PCM and transmit it back to us for analysis, resulting in a 2nd and 3rd optimised tune delivered to you for programming, therefore locking in optimum efficiency, absolute engine component safety, and peak power delivery.
A small selection of our best selling Fiesta ST200 tuning parts
(Click to see them on our webshop)
Beware:
All ECU "calibrations" are not created equally...
There are many ways to calibrate a modern vehicles ECU but the sad fact remains that a huge percentage of the tunes we see have had all the safety strategies and drive logic features removed from them. These MED17 PCM's have exceptional engine control strategies built into them and these systems are a key reason that as standard, these vehicles drive so amazingly well. Smooth, linear and powerful to the rev limiter. And safe too... the protection strategies are incredibly complex and work alongside a very comprehensive torque model in order to deliver what the driver asks, but keep the engine in one piece should things go wrong.
To recalibrate an MED17 PCM properly, from scratch as we do, takes many hundreds of hours of development on our in house dyno. But the results are worthwhile.
Rest assured that when we calibrate a vehicles PCM we retain:
- Full torque model remains intact. (This is what makes the vehicle drive so well)
- Knock control system is left intact and working (Guards against detonation)
- Over-boost limits. (Protects against over-boost due to fault)
- Under-boost limits. (Protects turbo against air leaks)
- Full Engine speed limits. (Raised if the tune would benefit)
- Exhaust temp load profiling. (Takes over if EGT exceeds limits)
- Fuel flow limit air control. (Takes over if you run too lean)
- Coolant temperature limits. (Never raised)
- All the ECU Limp home strategies. (These are what get you home!)
- All of the 300+ fault codes are retained so your ECU can report faults.
The above may look and read like common sense?
You are right... retaining everything above is desirable, but to do so requires an understanding of how these torque modelled systems work so that we can actually "recalibrate" the various sub-systems to work the way we want them to, whilst targeting higher airflow and power levels.
Sadly, because all of the above strategies will, by their very nature, fight our efforts to create extra airflow, many amateurs find ways to just disable the limits, often by "de-calibrating" the system so it will allow extra airflow.
We regularly see calibrations with various anticipation and prediction systems switched off, load limits flat-lined, air load limits totally disabled, fuel flow limits deleted, knock systems de-sensitised, the list goes on, its quite disappointing to see.
How would you know?
That’s a good question, and it depends just how bad they have de-calibrated the system.
Lets face a simple fact here... if you have a vehicle with a virtually standard engine and turbo that drove perfectly well before a re-calibration, extending its headroom wont make it drive or perform worse during normal driving. Why would it? No reason at all. Same engine, same air path, same hardware. So it should drive the same, but be faster at big throttle openings.
Now, if they have "only" removed all the safety limits (running more boost than a 3bar map sensor can see for example) then the vehicle will still drive perfectly well if the rest of the system has been recalibrated to properly request the torque the conversion makes. That kind of calibration will just have no safety limits in place should anything go wrong. hopefully it wont, so all is well.
However, if you start to disable the torque targeting system, or make a mess of recalibrating it then you end up with all manner of horrible drive-ability problems. Aggressive throttle, unpredictable or surging power delivery, doesn’t want to just cruise along at a set speed, these are all very common when a confused ECU tries to deliver closed loop airflow control with a broken model.
And if that wasn’t bad enough, some of these de-calibrated strategies are of course firing out fault codes so we see some with all 300+ codes just deleted so the ECU cant report them. This in turn disables all the limp home strategies designed to take control and get you home in the event of component failure.
Sadly, this is the reality of modern tuning... Take care out there!
Further reading:
If this has wet your appetite to know more about how your Ford Ecoboost management strategy in the PCM works, you may well enjoy my series of 3 blogs about a very similar system.
Blog 1 of 4. Understanding Ford Ecoboost Torque Control
(There are more located in our main technical info section with Stus other 70+ magazine articles)
MSD 330 Dyno Graph (Calibration revised to MSD 340 recently)
One of our MSD 330 Calibrations.
(Calibration revised to MSD 340 recently)
Our reviews speak for themselves..
With over 25 years of Ford RS And ST tuning experience under our belts, we are more than happy to advise and discuss tuning options for your vehicle. Tuned in house or remotely, you will have our full support and backup all the way.
